Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight

  • Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight
  • Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight
  • Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight
  • Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight
Certificación ISO
Cantidad de orden mínima 1
Precio 24000

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Modelo No. Y81F-250 Tipo prensa de la chatarra
Automatización Semiautomático Cyl.Force principal 250 toneladas
Tamaño de la caja de prensa 2000*1750*1000 (mm) Talla de bala 500*500 mm)
Bala 250 ~ 450 (kg) Motor 60 (kw)
Tipo de potencia Hidráulico Fuerza nominal 125tones ~ 1200tones
Fuerza 15kw ~ 270kw Voltaje 21.5Mpa, personalizado
Capacidad de producción 5 sets/mes Tipo impulsado Hidráulico
Grado automático Semiautomático
Resaltar

2000*1750*1000mm Press Box Hydraulic Scrap Baler

,

500*500mm Bale Size Metal Baler Machine

,

250~450Kg Bale Weight Scrap Metal Compactor
Deja un mensaje
Descripción de producto
Y81f-250 Hydraulic Steel Shaving Baler Compress Machine OEM
Product Overview

The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. These bales can be formed into square columns, cylinders, octagons, or other shapes to optimize transportation, reduce costs, and improve logistics efficiency.

Key Features
  • Ideal for steel plants, recycling centers, and metal processing industries
  • Hydraulic drive system with manual or PLC automatic control options
  • Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
  • No need for fixed foot screws - portable operation
  • Diesel engine compatible for areas without power supply
  • Extrusion force from 63 to 400 tons (10 available grades)
  • Productivity ranging from 4 to 40 tons per shift
  • Fully customizable compression chamber and bale dimensions
Technical Specifications
Attribute Specification
Product Name Y81 series hydraulic metal baler
Condition New
Application Scrap metal processing
Nominal Force 125Tons ~1200Tons
Driven Type Hydraulic
Power 15KW~270KW
Voltage 21.5Mpa (Customizable)
Color Customizable
Automatic Grade Semi-Automatic
Commercial Terms
Term Detail
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 10 sets/month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Overseas engineer support available
Model Specifications
Model Main Cyl.Force (ton) Press Box Size (mm) Bale Size (mm) Bale Weight (kg) Motor (KW)
Y81F-125 125 1200*700*600 300*300 50-70 15
Y81F-160 160 1600*1000*800 400*400 100-150 22
Y81F-200 200 1600*1200*800 400*400 120-220 37
Y81F-250 250 2000*1750*1200 500*500 300-500 60
Y81F-315 315 3000*2500*1200 600*600 400-700 90
Y81F-315 315 3500*3000*1300 700*700 600-1000 90
Y81K-315 315 4000*3000*1300 700*700 800-1200 135
Y81F-400 400 3500*3000*1300 700*700 800-1300 135
Y81K-400 400 4000*3000*1300 700*700 900-1300 135
Y81F-500 500 4000*3000*1300 700*700 900-1500 135
Y81K-500 500 4000*3500*1300 700*700 900-1600 135
Y81F-600 600 4000*3000*1400 700*700 1000-1700 180
Y81K-600 600 4000*3000*1300 700*700 1100-1700 180
Y81F-800 800 4000*3500*1400 700*700 1200-1800 180
Y81K-800 800 4000*3500*1400 700*700 1200-1800 180
Y81F-1000 1000 5000*3500*1500 700*700 1300-1900 225
Y81K-1200 1200 5000*3500*1500 700*700 1400-2000 270
Product Images

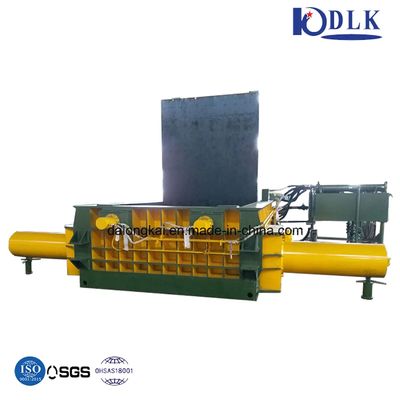

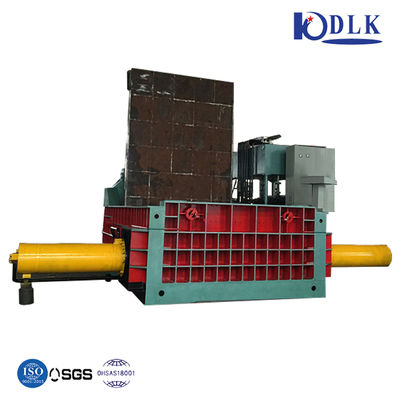

Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight 0
Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight 1
Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight 2
Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight 3
Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight 4
Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight 5
