Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling

  • Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling
  • Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling
  • Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling
  • Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling
  • Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling
Cantidad de orden mínima 1

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Modelo No. Y81F-200 Cyl.Force principal 200 toneladas
Tamaño de la caja de prensa 1800*1400*900 (mm) Talla de bala 400*400 (mm)
Bala 130 ~ 180 (kg) Potencia del motor 44 (KW)
Fuerza nominal 125tones ~ 1200tones Tipo impulsado Hidráulico
Voltaje 21.5MPA Grado automático Semiautomático
Capacidad de producción 5 sets/mes Fuerza de extrusión 63 toneladas a 400 toneladas
Productividad 4 Tons/Shift a 40tons/Shift Fuente de alimentación Opción de motor diesel
Tipos de descarga Dirigiéndose, empujando, reenviando, levantando manual
Resaltar

Y81F-200 Hydraulic Baling Press

,

1800x1400x900mm Scrap Baler Machine

,

400x400mm Metal Scrap Baler
Deja un mensaje
Descripción de producto
Y81f-200 Steel Shaving Baling Press Machine
Product Overview

The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. This machine reduces transportation costs, improves logistics efficiency, and is ideal for steel plants, recycling facilities, and metal processing industries.

Key Features
  • Hydraulic operation with manual or PLC automatic control options
  • Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
  • No need for fixed foot screws - portable operation
  • Diesel engine compatible for areas with unreliable power supply
  • Customizable compression chamber and bale dimensions
  • Extrusion force from 63 to 400 tons (10 available grades)
  • Productivity ranging from 4 to 40 tons per shift
Technical Specifications
Attribute Value
Product Name Y81 series hydraulic metal baler
Condition New
Application Scrap metal processing
Nominal Force 125Tons ~1200Tons
Driven Type Hydraulic
Power 15KW~270KW
Voltage 21.5Mpa (Customizable)
Color Customizable
Automatic Grade Semi-Automatic
Model Specifications
Model Main Cyl.Force(ton) Press Box Size(mm) Bale Size(mm) Bale Weight(kg) Motor(KW)
Y81F-125 125 1200*700*600 300*300 50-70 15
Y81F-160 160 1600*1000*800 400*400 100-150 22
Y81F-200 200 1600*1200*800 400*400 120-220 37
Y81F-250 250 2000*1750*1200 500*500 300-500 60
Y81F-315 315 3000*2500*1200 600*600 400-700 90
Y81K-315 315 4000*3000*1300 700*700 800-1200 135
Y81F-400 400 3500*3000*1300 700*700 800-1300 135
Y81K-400 400 4000*3000*1300 700*700 900-1300 135
Commercial Terms
Term Detail
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 10 sets/month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service

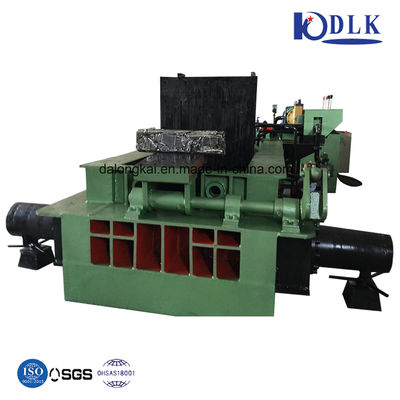

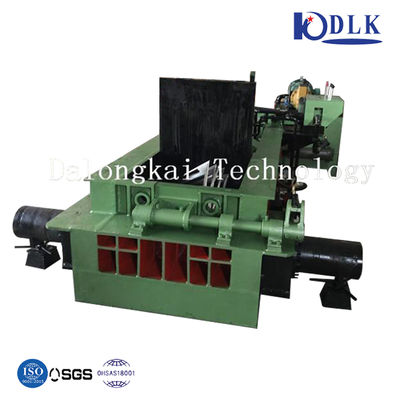

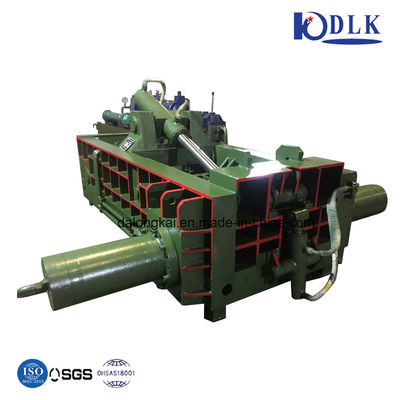

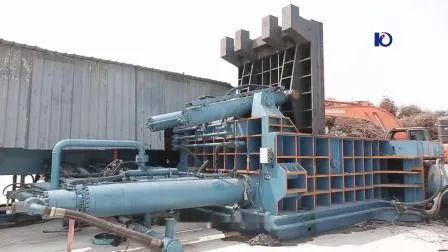

Product Images
Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling 0 Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling 1 Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling 2 Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling 3 Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling 4 Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling 5
Frequently Asked Questions
Q1: How can I get after-sales service?

We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by manufacturing defects. For user-caused issues, spare parts are available at cost. Direct technical support is always available.

Q2: Can I visit your factory before ordering?

Visitors are welcome at our factory located at 29# Panlongshan Road, Jiangyin city, Jiangsu province (214429), China. We're conveniently located near Shanghai Pudong Airport and can arrange airport pickup and hotel booking services.

Q3: Are you a factory or trading company?

We are a manufacturer with 20 years of experience, exporting 50-60% of our production.

Q4: How can I trust your company?

Our credentials include:

  • Third-party assessed national patents and CE, ISO certifications
  • Open factory inspection policy
  • 20 years of specialization in hydraulic balers and hydraulic shears

Q5: Is your price competitive?

We offer the best factory price for our high-quality machines, balancing superior product performance with excellent service.
