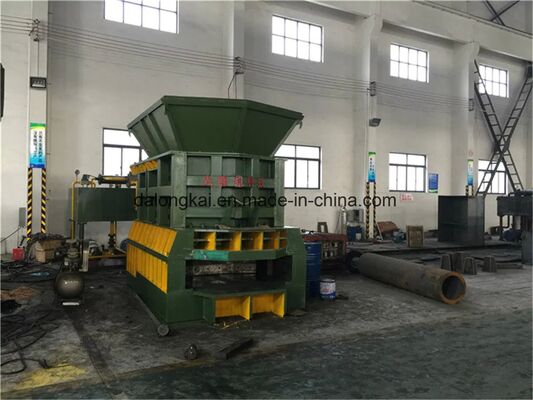

WS-315 Horizontal Scrap Metal Shear Machine with 3150kn Max Cutting Force, 800mm Blade Length, and 3-5t/H Production Rate

  • WS-315 Horizontal Scrap Metal Shear Machine with 3150kn Max Cutting Force, 800mm Blade Length, and 3-5t/H Production Rate
  • WS-315 Horizontal Scrap Metal Shear Machine with 3150kn Max Cutting Force, 800mm Blade Length, and 3-5t/H Production Rate
Cantidad de orden mínima 1
Precio 54000
Datos del producto
Modelo NO. WS-315 Fuerza de corte máxima Las demás:
Longitud de la hoja 800 mm Tasa de producción 3-5 t/h
Fuerza 60kW Fuerza nominal 400 toneladas
Tipo impulsado Hidráulico Longitud máxima para cortar 1600 mm
Voltaje 21.5MPA Calificación automática Automático
Altura del esquileo 300/420 mm Fuerza de corte máxima (WS-400) 4000KN
Longitud de la hoja (WS-400) 1000 mm Tasa de producción (WS-400) 4-7T/H
Energía (WS-400) 74Kw
Resaltar

3150kn Max Cutting Force Gantry Shear

,

800mm Blade Length Scrap Metal Shear

,

3-5t/H Production Rate Horizontal Shear Machine
Deja un mensaje
Descripción de producto
WS-315 Horizontal Scrap Metal Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap processing with easy operation and flexible transportation featuring a roll on/roll off system. Various models are available to meet different production requirements.
Key Applications
Specifically engineered for scrap metal processing operations, providing efficient and cost-effective material handling solutions.
Product Features
  • Horizontal structure allowing manual or automatic feeding with conveyor systems
  • PLC control with push-button operation for enhanced safety and reliability
  • High output capacity for maximum productivity
  • Easy operation with flexible transportation via roll on/roll off system
Technical Specifications
Specification Details
Product Name WS Horizontal Metal Shear
Condition New
Application Scrap metal
Nominal Force 400 Ton
Driven Type Hydraulic
Max. Length To Shear 1600mm
Voltage 21.5 Mpa, Customized
Color Customized
Automatic Grade Automatic
Performance Specifications
Model Max Cutting Force (KN) Blade Length (mm) Shear Height (mm) Production Rate (t/h) Power (KW)
WS-400 4000 1000 300/420 4-7 74
WS-500 5000 1400/1600 300/420 6-9 90
WS-630 6300 1400/1600 300/420 8-15 135
WS-800 8000 1600 420/500 12-18 180
WS-1000 10000 1600/2100 420/500 15-25 225
Commercial Terms
Term Details
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 5 sets /month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service
