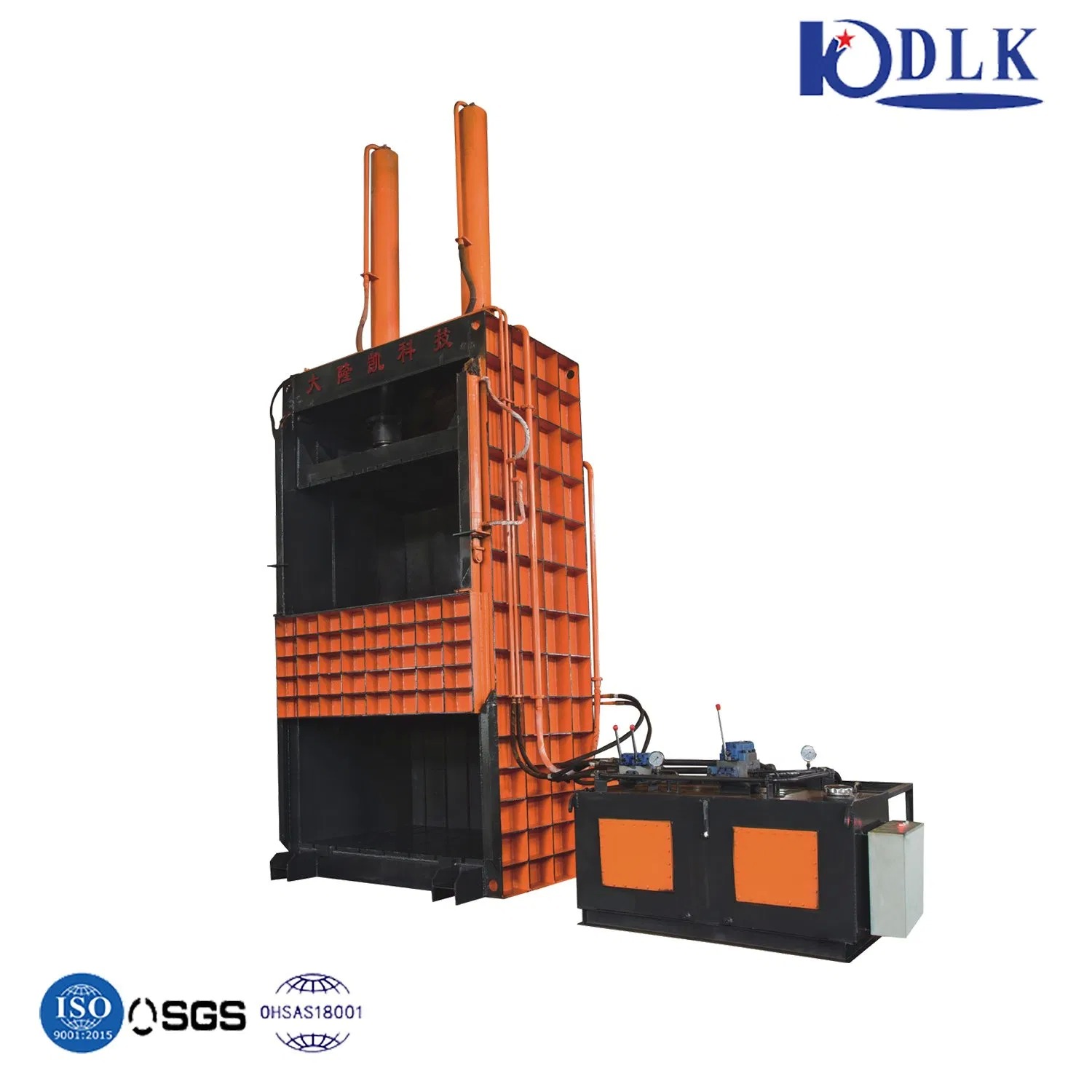

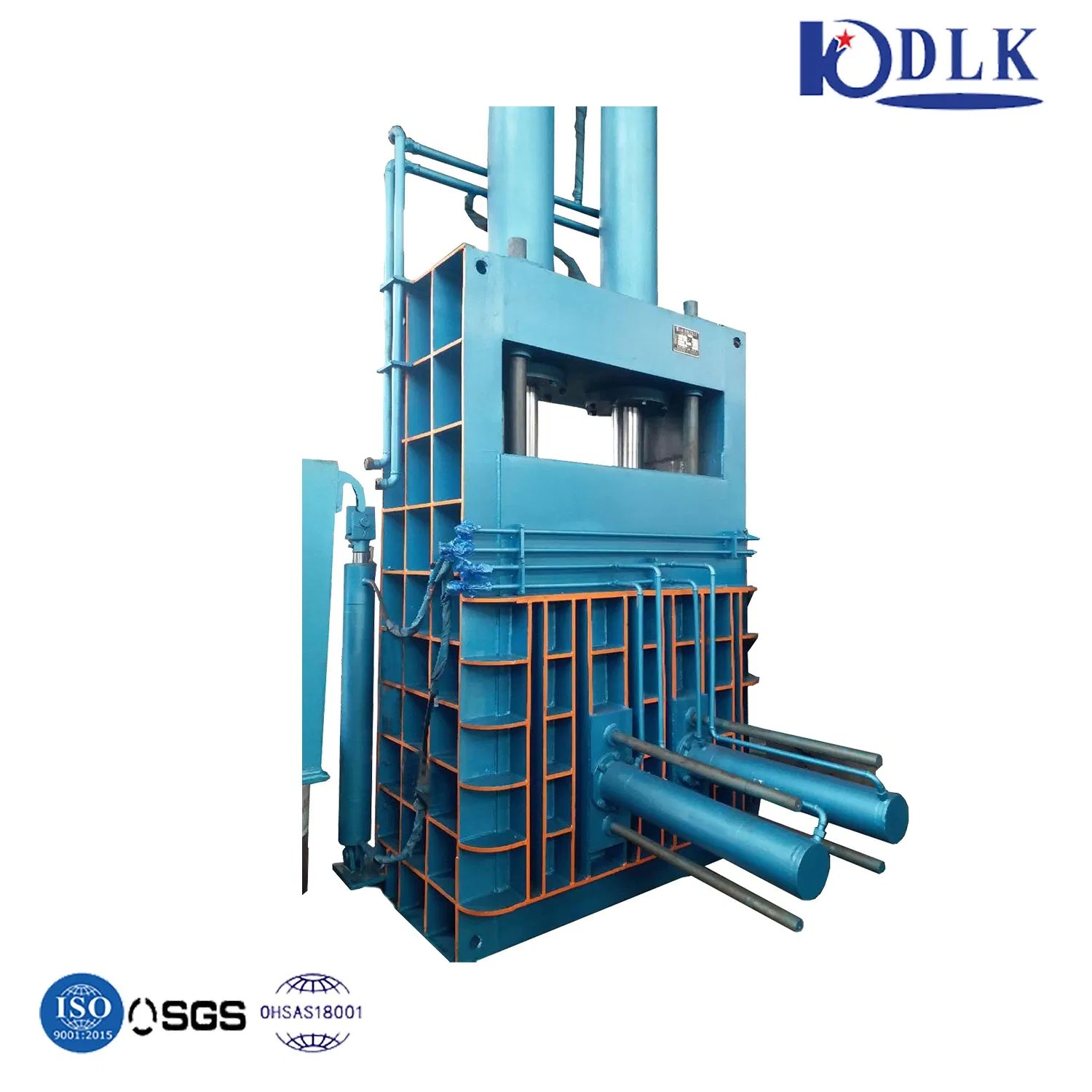

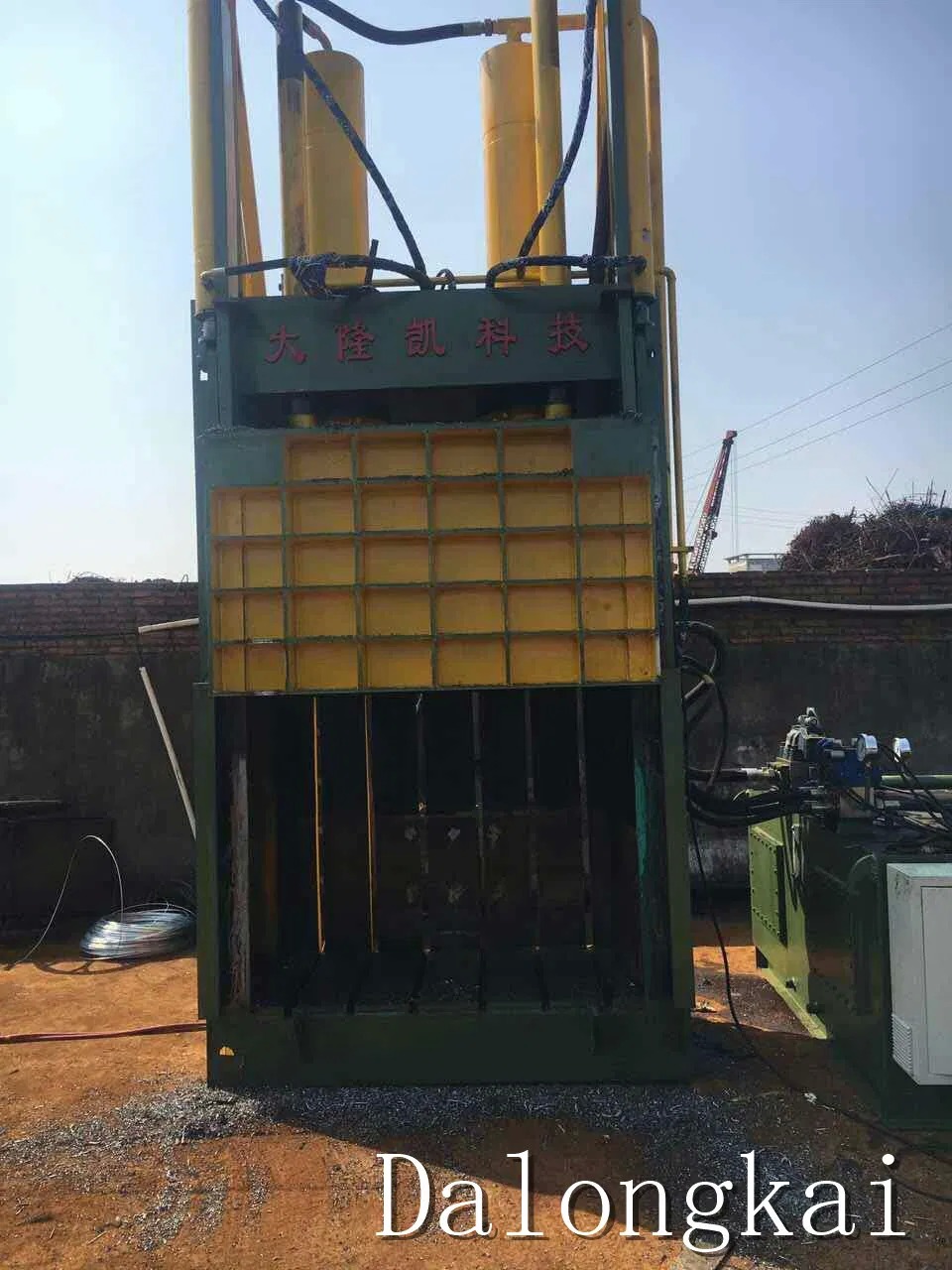

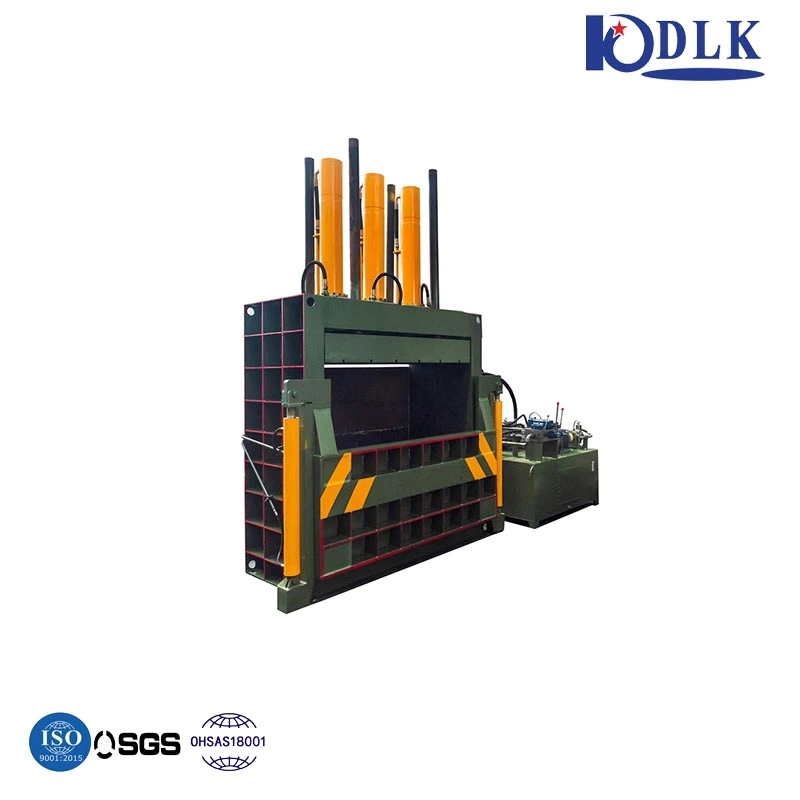

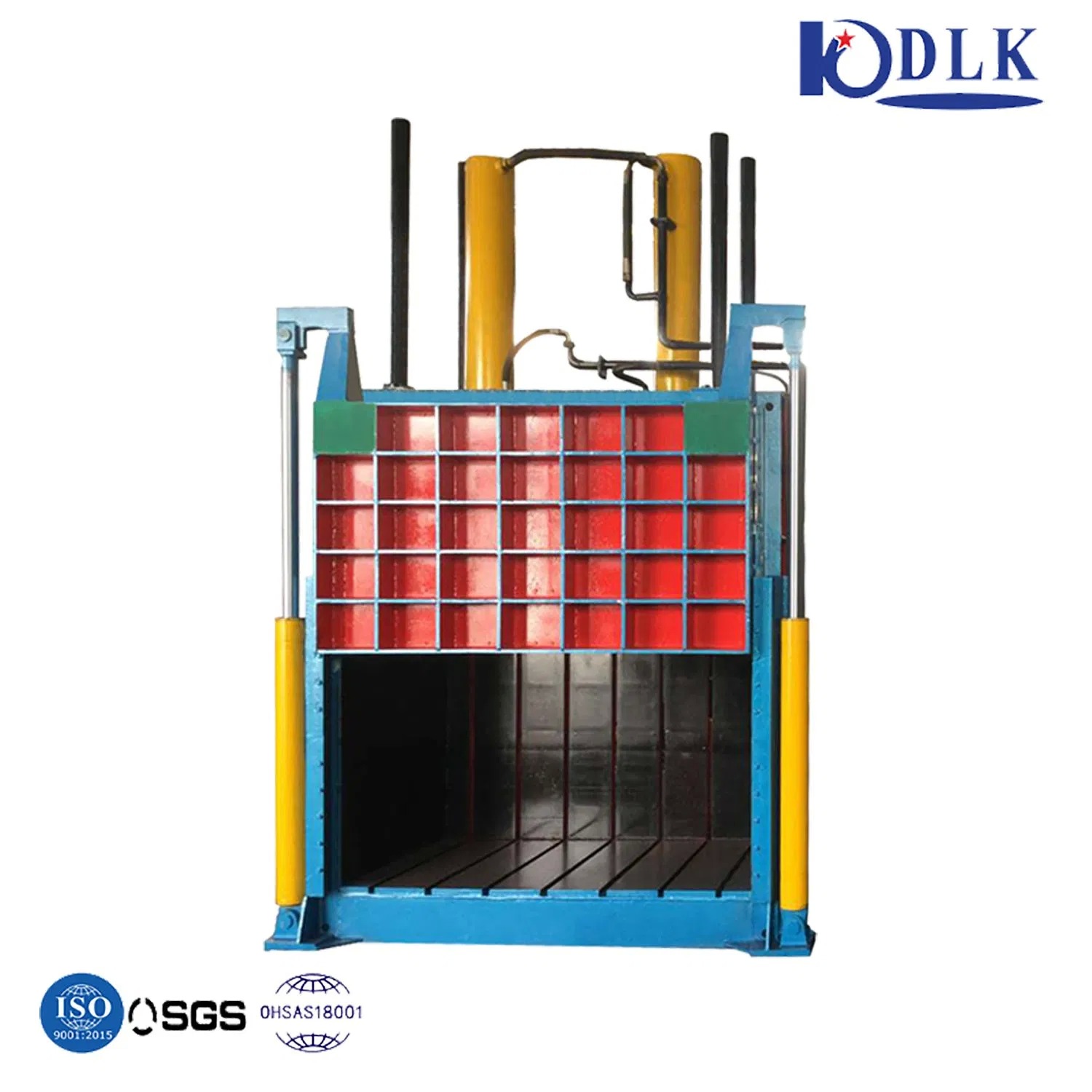

Y82-200 Paper Vertical Baler Machine

Cantidad de orden mínima 1
Precio 1
Datos del producto
Modelo NO. Y82-200 Automatización No automatización
Computerizado Computerizado Cyl.Force principal 200 toneladas
tamaño de la caja de prensa 1500*1000*1600(milímetro) Sección de balas 1500*1000(milímetro)
Fuerza 37 (KW) Método de descarga de balas Empujar la bolsa
Estructura vertical Paquete de transporte recipiente
Especificación Y82-200 Marca ¿ Qué quieres decir?
Origen Porcelana Código HS 8422400090
Capacidad de producción 10 juegos/mes
Resaltar

Y82-200 vertical paper baler

,

industrial paper baler machine

,

heavy-duty vertical baler

Deja un mensaje
Descripción de producto
Applications:
1. Mainly used for compressing and baling of the woven bags/cloth, waste paper, scrap paper convenient for transportation and storage.
2. Mainly used for compressing and baling of the wool/wool ball.

Features:
1. Baling press pressure ranges from 15tons to 400tons. It has a complete range of specifications.
2. Hydraulic pressure drive, using the overhead type oil cylinder and it can work without underground foundation.
3. All the oil cylinders adopt imported sealing rings. This makes it have reliable quality and prolong service life.
4. Package block size and the size of the compression chamber can be customized according to customer's request.

Technical Parameters
Attributions Model Number:     Y82-250~Y82-1600
  Certification:         SGS
  Place of Origin:    Jiangsu P.R. China


Commercial terms Minimum  Order Quantity:   1 Set
  Price:                      Negotiable
  Payment Terms:            30% T/T In Advance
  Supply Ability:              15set /month
  Delivery Time:              as your requirement
  Packaging Details:          Seaworthy packing
  After-sales Service :         Engineers are available to overseas service
Specification

Baler for paper/plastic
No. Model Nominal Force Chamber Size Bale Section Power Bale discharging method
1 Y82-25T 250KN/25t 1080*580*1500 mm 1080*580mm 15KW Turn-out
2 Y82-63T 630KN/63t 1080*750*1500 mm 1080*750mm 15KW Turn-out
3 Y82-100T 1000KN/100t 1100*700*1600 mm 1100*700mm 22KW Turn-out
4 Y82-160T 1600KN/160t 1100*700*1600 mm 1100*700mm 22KW Turn-out
5 Y82-200 2000KN/200t 1500*1000*1600 mm 1500*1000mm 37KW Turn-out
6 Y82-250 2500KN/250t 1500*1000*1600 mm 1500*1000mm 44KW Turn-out or PLC
control
7 Y82-315 3150KN/315t 2200*1100*3000 mm 2200*1100 60KW
8 Y82-400 4000KN/400t 1500*1000*1600 mm 1500*1000 90KW

Y82-200 Paper Vertical Baler Machine 0Y82-200 Paper Vertical Baler Machine 1
Factory & Certification
Y82-200 Paper Vertical Baler Machine 2Y82-200 Paper Vertical Baler Machine 3Y82-200 Paper Vertical Baler Machine 4
FAQ

Q1: How can i get the after-service?
A: We provide  one year guarantee and lifelong maintenance.
     We will send you the spare parts by free if the problems caused by us.
     If it is the men-made problems,we also send the spare parts,however it is charged.
     Any problem, you can call us directly.

Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
     Our factory address: 29# Panlongshan Road,Jiangyin city,Jiangsu province,214429, P.R China
     Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.
      Hotel booking service is available .

Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 20 years, export proportion 50~60%.

Q4:How can I trust your company?
A: With 20-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment
2. Welcome to inspect anytime. We are near to Shanghai Pudong airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears

Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
