Q15b-1600 Gantry Plate Shear Machine with 160 Ton Max Shear Force 1200mm Blade Length and 16/12*1000mm Max Cutting
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Número de modelo | Q15B-1600 | Fuerza máxima de cizallamiento | 160 toneladas |
|---|---|---|---|
| Longitud de la hoja | 1200 milímetros | Corte máximo | 16/12*1000 milímetro |
| Frecuencia de corte | 4-7 veces/minuto | Potencia del motor | 22 kilovatios |
| Fuerza nominal | 120 toneladas ~ 315 toneladas | Tipo impulsado | Hidráulico |
| Voltaje | 21,5 MPa | Calificación automática | Semiautomático |
| Capacidad de producción | 5 juegos/mes | Fuerza | 15KW~44kW |
| Fuerza de corte | 160 toneladas | Material máximo | 16/12*1000 milímetro |
| Motor | 18.5 kW | ||
| Resaltar | 160 Ton Max Shear Force Gantry Shear,1200mm Blade Length Plate Shear Machine,16/12*1000mm Max Cutting Gantry Plate Shear |
||
Descripción de producto

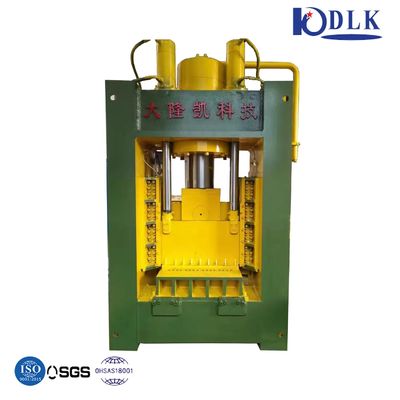

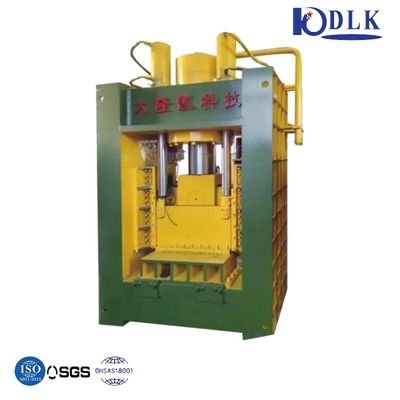

Q15b-1600 Gantry Plate Shear Machine
Product Overview
This hydraulic gantry plate shear machine is designed for processing various metal plates, cutting them into materials of different specifications. It effectively replaces flame cutting methods, significantly reducing operational costs while improving efficiency.
Technical Specifications
Model Number: Q15-1200~Q15-3150
Certification: SGS
Place of Origin: Jiangsu, P.R. China
Product Name: Gantry Plate Shear
Condition: New
Application: Scrap Metal Processing
Nominal Force: 120Tons ~ 315Tons
Driven Type: Hydraulic
Power: 15KW ~ 44kW
Operating Pressure: 21.5Mpa (Customizable)
Color: Customizable
Automation Grade: Semi-Automatic
Certification: SGS
Place of Origin: Jiangsu, P.R. China
Product Name: Gantry Plate Shear
Condition: New
Application: Scrap Metal Processing
Nominal Force: 120Tons ~ 315Tons
Driven Type: Hydraulic
Power: 15KW ~ 44kW
Operating Pressure: 21.5Mpa (Customizable)
Color: Customizable
Automation Grade: Semi-Automatic
Performance Specifications
| Model | Shearing Force (ton) | Blade Length (mm) | Max. Cutting Material (mm) | Shearing Frequency (times/min) | Motor Power (KW) |
|---|---|---|---|---|---|
| Q15A-1200 | 120 | 600 | 18×500 | 4-7 | 15 |
| Q15A-1600 | 160 | 600 | 20×500 | 4-7 | 18.5 |
| Q15A-2000I | 200 | 600/800 | 25×500 | 4-7 | 22 |
| Q15A-2500I | 250 | 600 | 30×500 | 4-7 | 22 |
| Q15A-2500II | 250 | 800 | 30×700 | 4-7 | 2×15 |
| Q15A-3150 | 315 | 800 | 30×700 | 4-7 | 45 |
| Q15A-4000 | 400 | 800 | 35×700 | 4-7 | 2×22 |
| Q15A-5000 | 500 | 900 | 40×800 | 4-7 | 2×45 |
| Q15B-1600 | 160 | 1200 | 16/12×1000 | 4-7 | 18.5 |
| Q15B-2000 | 200 | 1200 | 18/16×1000 | 4-7 | 22 |
| Q15B-2500I | 250 | 1200/1600 | 25/20×1000 | 4-7 | 2×18.5 |
| Q15B-3150 | 315 | 1200 | 30/25×1000 | 4-7 | 2×18.5 |
Product Images

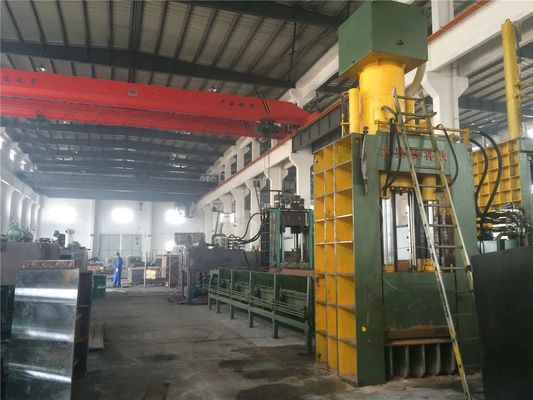

Factory & Certification
Commercial Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Payment Terms: 30% T/T In Advance
Supply Ability: 10 sets per month
Delivery Time: As per customer requirements
Packaging Details: Seaworthy packing for international shipping
After-sales Service: Engineers available for overseas technical support and maintenance
Price: Negotiable
Payment Terms: 30% T/T In Advance
Supply Ability: 10 sets per month
Delivery Time: As per customer requirements
Packaging Details: Seaworthy packing for international shipping
After-sales Service: Engineers available for overseas technical support and maintenance
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send spare parts free of charge if problems are caused by manufacturing defects. For operator-caused issues, we also provide spare parts at cost. Direct phone support is available for any technical questions.
Q2: Can I visit your factory before placing an order?
Yes, we welcome customers to visit our factory. Our facility is located at 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R. China. We are conveniently located near Shanghai Pudong Airport and provide airport pickup service. Hotel booking assistance is also available.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for over 20 years. Export business accounts for 50-60% of our production.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable technical suggestions and competitive pricing. Our credentials include third-party assessments, national patents, and CE, ISO certifications for all equipment. Factory inspections are welcome, and we specialize in hydraulic balers and hydraulic shears.
Q5: Is your price competitive?
We supply only high-quality machinery and provide the best factory pricing based on superior products and comprehensive service support.
