Q15A-4000 Gantry Plate Shear Machine with 400 Ton Max Shear Force 800mm Blade Length and 35*700mm Max Cutting Specifications
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Fuerza máxima de cizallamiento | 400 (toneladas) | Longitud de la hoja | 800(milímetros) |
|---|---|---|---|
| Corte máximo | 35*700(milímetro) | Frecuencia de corte | 4-7 (veces/minuto) |
| Potencia del motor | 2*22(kilovatios) | Fuerza nominal | 120 toneladas ~ 315 toneladas |
| Tipo impulsado | Hidráulico | Voltaje | 21.5MPA |
| Calificación automática | Semiautomático | Fuerza de corte | 120-500 (toneladas) |
| Material máximo | 18-40*500-1000(milímetro) | Rango de potencia | 15KW~44kW |
| Capacidad de producción | 10 juegos/mes | Variantes de modelo | Q15A-1200 a Q15B-3150 |
| Configuración del motor | Unidad única/dual | ||
| Resaltar | 400 Ton Max Shear Force Gantry Plate Shear Machine,800mm Blade Length Gantry Shear,35*700mm Max Cutting Specifications Hydraulic Shear Machine |
||
Descripción de producto

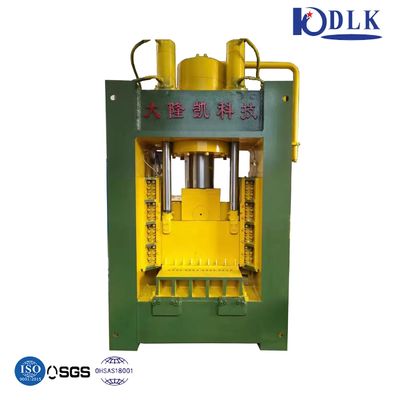

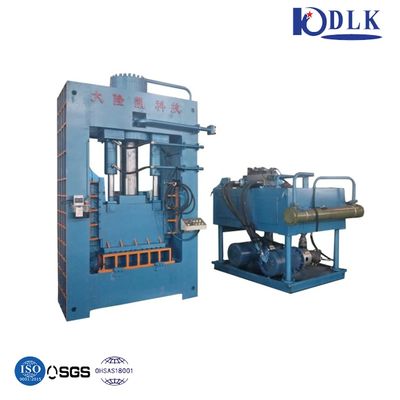

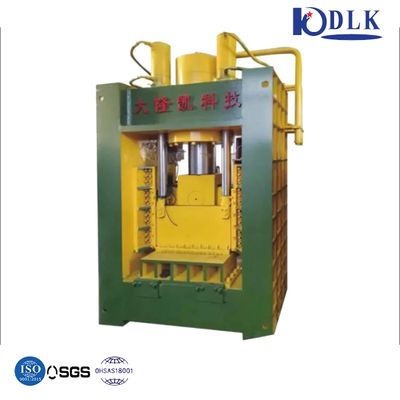

Q15A-4000 Gantry Plate Shear Machine
Product Overview
This hydraulic gantry plate shear machine is designed for processing various metal plates, cutting them into materials of different specifications. It effectively replaces flame cutting methods while significantly reducing operational costs.
Technical Specifications
| Model Number | Q15-1200~Q15-3150 |
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
| Product Name | Gantry Plate Shear |
| Condition | New |
| Application | Scrap Metal Processing |
| Nominal Force | 120Tons ~315Tons |
| Driven Type | Hydraulic |
| Power | 15KW~44kW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Model Specifications
| Model | Shearing Force (ton) | Blade Length (mm) | Max. Cutting Material (mm) | Shearing Frequency (times/min) | Motor (KW) |
|---|---|---|---|---|---|
| Q15A-1200 | 120 | 600 | 18*500 | 4-7 | 15 |
| Q15A-1600 | 160 | 600 | 20*500 | 4-7 | 18.5 |
| Q15A-2000I | 200 | 600/800 | 25*500 | 4-7 | 22 |
| Q15A-2500I | 250 | 600 | 30*500 | 4-7 | 22 |
| Q15A-2500II | 250 | 800 | 30*700 | 4-7 | 2*15 |
| Q15A-3150 | 315 | 800 | 30*700 | 4-7 | 45 |
| Q15A-4000 | 400 | 800 | 35*700 | 4-7 | 2*22 |
| Q15A-5000 | 500 | 900 | 40*800 | 4-7 | 2*45 |
| Q15B-1600 | 160 | 1200 | 16/12*1000 | 4-7 | 18.5 |
| Q15B-2000 | 200 | 1200 | 18/16*1000 | 4-7 | 22 |
| Q15B-2500I | 250 | 1200/1600 | 25/20*1000 | 4-7 | 2*18.5 |
| Q15B-3150 | 315 | 1200 | 30/25*1000 | 4-7 | 2*18.5 |
Product Images
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Manufacturer Information
Jiangsu Dalongkai Technology Co., Ltd. has been a trusted name in the waste recycling equipment industry for over a decade. As a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products include shear balers, scrap balers, scrap shears, and recycling cranes.
In addition to scrap metal processing equipment, we also supply horizontal and vertical balers for compacting plastic, paper, cardboard, straw, textile, and other types of waste.
Our Dalongkai brand has received critical acclaim both domestically and overseas. We have successfully passed TUV and ISO9001 Quality Management System certifications and are currently obtaining European standards such as CE and UL approval.
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send spare parts free of charge if problems are caused by manufacturing defects. For user-caused issues, we provide spare parts at cost. Direct phone support is available for any problems.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our address: 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R China. We are located near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with 50-60% of production for export.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents, CE, and ISO certifications for all equipment. Factory inspections are welcome, and we specialize in hydraulic balers and hydraulic shears.
Q5: Is your price competitive?
We supply only high-quality machines and provide the best factory price based on superior products and comprehensive service.
