WS-630 Model Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Cutting
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Modelo No. | WS-630 | Fuerza de corte máxima | Las partidas siguientes se aplicarán: |
|---|---|---|---|
| Longitud de la cuchilla | 1400 mm | Tasa de producción | 8-12T/H |
| Fuerza | 110kw | Modelo de hidrocilindro de corte | YG400/280 |
| Cantidad de hidrocilindros de corte | 2 | Empuje cortante del hidrocilindro | 3150KNX2 |
| Modelo de hidrocilindro de empuje | YG280/200 | Empuje de empuje del hidrocilindro | Las demás: |
| Presión del sistema hidráulico | <22Mpa | Altura de corte | 420 mm |
| tiempos de esquila | 2 a 4 veces/minuto | Modo de funcionamiento | Materiales de carga mecánica, control por pulsador y PLC |
| Tamaño del tanque de aceite | 3000X2000X800 (4500L) | ||
| Resaltar | WS-630 Model Gantry Shear,6300kn Max Cutting Force Hydraulic Metal Shear,1400mm Blade Length Scrap Metal Cutting Machine |
||
Descripción de producto
WS-630 Hydraulic Automatic Steel Cutting Machine
About Our Company
Jiangsu Dalongkai Technology Co., Ltd. specializes in manufacturing scrap metal recycling processing and hydraulic equipment. With strong technology, advanced manufacturing lines, and comprehensive testing devices, we produce various hydraulic scrap balers, scrap shears, container shears, hydraulic metal balers, garbage compactors, briquetting presses, sheet metal shears, and other non-standard equipment. Our products are exported to Russia, India, South Africa, Southeast Asia, and other regions.
Our machines are primarily designed for scrapyards, steel mills, scrap recycling processing industries, and nonferrous & ferrous smelting industries.
Finished Products

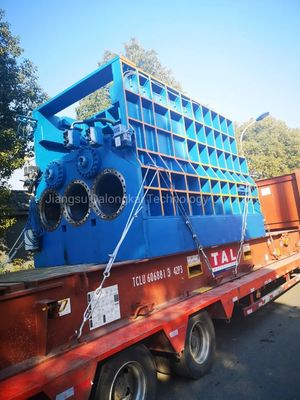

Package
WS-630 Horizontal Metal Container Shear
Applications
The scrap shear is designed for economical scrap processing. This machine features easy operation and flexible transportation with a roll on/roll off system. Various models are available. HPM series of horizontal balers work with manual belting.
Key Features
- Horizontal structure: feeding can be manual or automatic with conveyor
- PLC control and push-button operation for safe and reliable performance
- High output capacity
WS-630 Container Shear Technical Parameters
| No. | Parameter Name And Content | Remark |
|---|---|---|
| 1 | Shearing Hydro-Cylinder Model: YG400/280 Quantity: 2 Nominal Thrust: 3150KNX2 |
|
| 2 | Push Hydro-Cylinder Model: YG280/200 Quantity: 1 Nominal Thrust: 1350KN |
|
| 3 | Hydraulic System Working Pressure | <22Mpa |
| 4 | Cutting Length/Height | 1400/420mm |
| 5 | Shearing Times | 2-4 Times/Min (Empty load Load operation) |
| 6 | Operating Mode | Mechanical Loading Materials, Push-Button & Plc Control (With The Remote Control) |
| 7 | Power Specification | 415V/3P 50Hz |
| 8 | Main Machine Power | 110Kw (not including system of cooling, heating and filtering) |
| 9 | Oil Tank Size | 3000X2000X800 (4500L) |
| 10 | Cooling Mode | Forced air cooling 52P 52P |

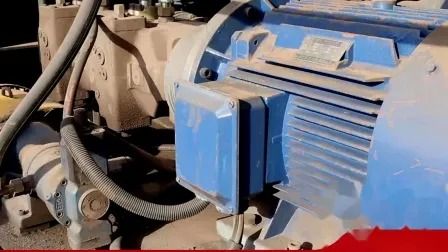

| 10 | Motor Model: Y2-250M-4 Quantity: 2 Rated Speed: 1470 Rpm Rated Power: 55 Kw |
|
| 11 | Pump Model: A4V250 Quantity: 2 Nominal Displacement: 250ml/r Rated Pressure: 31.5Mpa |
| Model | Max Cutting Force(KN) | Blade Length(mm) | Shear Height(mm) | Production Rate(t/h) | Power(KW) |
|---|---|---|---|---|---|
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 110 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 220 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 360 |
