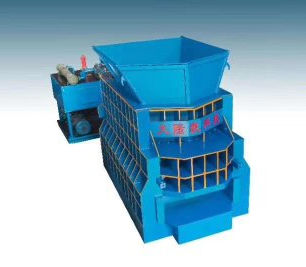

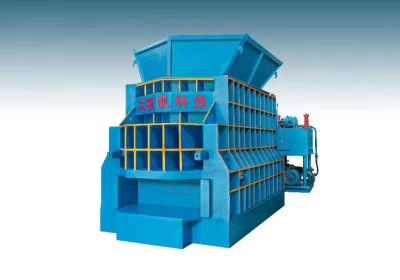

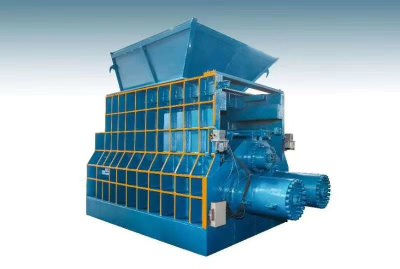

WS-1000 Horizontal Container Shear with 15-25t/H Production Rate 360kw Power for Scrap Recycling

  • WS-1000 Horizontal Container Shear with 15-25t/H Production Rate 360kw Power for Scrap Recycling
  • WS-1000 Horizontal Container Shear with 15-25t/H Production Rate 360kw Power for Scrap Recycling
  • WS-1000 Horizontal Container Shear with 15-25t/H Production Rate 360kw Power for Scrap Recycling
  • WS-1000 Horizontal Container Shear with 15-25t/H Production Rate 360kw Power for Scrap Recycling
  • WS-1000 Horizontal Container Shear with 15-25t/H Production Rate 360kw Power for Scrap Recycling
  • WS-1000 Horizontal Container Shear with 15-25t/H Production Rate 360kw Power for Scrap Recycling
Certificación ISO
Cantidad de orden mínima 1
Precio 53000

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Fuerza de corte máxima 1000ton Longitud de la cuchilla 1600/2100 mm
Tasa de producción 15-25 t/h Fuerza 360kW
Modelo de cilindro de corte YG500/380 Cantidad de cilindros de corte 2
Empuje del cilindro de corte 5000Knx2 Modelo de cilindro de empuje YG340/220
Cantidad de cilindros de empuje 1 Empuje del cilindro de empuje 2500kn
Presión hidráulica <22Mpa Altura de corte 420 mm
tiempos de esquila 2-3 veces/min Tamaño del tanque de aceite 10000X2000X750
Potencia del motor 90 kW
Resaltar

15-25t/H Production Rate Container Shear

,

360kw Power Gantry Shear

,

Horizontal Structure Scrap Shear
Deja un mensaje
Descripción de producto
WS-1000 Container Shear

Jiangsu Dalongkai Technology Co., Ltd. specializes in manufacturing scrap metal recycling processing and hydraulic equipment. With advanced technology, modern manufacturing lines, and comprehensive testing devices, we produce various hydraulic scrap balers and shears including container shears, metal balers, garbage compactors, briquetting presses, and sheet metal shears. Our products are exported worldwide to Russia, India, South Africa, and Southeast Asia.

Our machines are designed for scrapyards, steel mills, scrap recycling processing, and nonferrous & ferrous smelting industries.

WS-1000 Horizontal Container Shear with 15-25t/H Production Rate 360kw Power for Scrap Recycling 0
Finished Products
WS-1000 Horizontal Container Shear with 15-25t/H Production Rate 360kw Power for Scrap Recycling 1
Package
WS-1000 Horizontal Container Shear with 15-25t/H Production Rate 360kw Power for Scrap Recycling 2
Product Specifications
Applications
The WS-1000 Container Shear is designed for economical scrap processing with easy operation and flexible transportation via roll on/roll off system. Various models are available to suit different requirements.
Key Features
  • Horizontal structure allows for manual or automatic feeding with conveyor
  • PLC control with push-button operation for safety and reliability
  • High output capacity for efficient processing
No. Parameter Name And Content Remark
1 Shearing Hydro-Cylinder
Model: YG500/380
Quantity: 2
Nominal Thrust: 5000Knx2
2 Push Hydro-Cylinder
Model: YG340/220
Quantity: 1
Nominal Thrust: 2500Kn
3 Hydraulic System Working Pressure <22Mpa
4 Cutting Length/Height 1600/420mm
5 Shearing Times 2-3Times/Min (Empty load Load operation)
6 Operating Mode Mechanical Loading Materials, Push-Button & PLC Control (With The Remote Control)
7 Power Specification 415V/3P 50Hz (According to your requirement)
8 Main Machine Power 360Kw (not including system of cooling, heating and filtering)
9 Oil Tank Size 10000X2000X750
10 Motor
Model: Y2-280M-4
Quantity: 4
Rated Speed: 1470 Rpm
Rated Power: 90 Kw
11 Pump
Model: A4V250*2
Quantity: 4 (connected pump)
Nominal Displacement: 250ml/r
Rated Pressure: 31.5Mpa
Other Models For Container Shear
Model Max Cutting Force(KN) Blade Length(mm) Shear Height(mm) Production Rate(t/h) Power(KW)
WS-630 6300 1400/1600 300/420 8-15 110
WS-800 8000 1600 420/500 12-18 220
WS-1000 10000 1600/2100 420/500 15-25 360
