WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height

  • WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height
  • WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height
  • WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height
  • WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height
  • WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height
  • WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height
Certificación ISO
Cantidad de orden mínima 1
Precio 53000

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Modelo No. WS-630 Fuerza de corte máxima Las partidas siguientes se aplicarán:
Longitud de la cuchilla 1600MM Tasa de producción 8-15 t/h
Fuerza 110kw Altura de corte 420 mm
Hidrocilindro de corte YG400/280 Hidrocilindro de empuje YG280/200
Presión del sistema hidráulico <22Mpa Longitud de corte 1400 mm
tiempos de esquila 2 a 4 veces/minuto Modo de funcionamiento Materiales de carga mecánica, control por pulsador y PLC
Especificación de potencia 415V/3P 50Hz Tamaño del tanque de aceite 3000X2000X800 (4500L)
Modo de enfriamiento Enfriamiento del aire forzado
Resaltar

8-15 T/H Production Rate Gantry Shear

,

110kw Power Scrap Shear

,

420mm Cutting Height Hydraulic Metal Cutting Machine
Deja un mensaje
Descripción de producto
WS-630 Horizontal Metal Container Shear
Applications
The WS-630 scrap shear is designed for economical scrap processing. This machine features easy operation and flexible transportation with a roll on/roll off system. Various models are available to suit different requirements. The HPM series of horizontal balers work with manual belting.
Key Features
  • Horizontal structure allows for both manual feeding and automatic feeding with conveyor
  • PLC control and push-button operation ensure safe and reliable performance
  • High output capacity for efficient scrap processing
WS-630 Container Shear Technical Parameters
No. Parameter Name and Content Remark
1
Shearing Hydro-Cylinder
Model: YG400/280
Quantity: 2
Nominal Thrust: 3150KNX2
2
Push Hydro-Cylinder
Model: YG280/200
Quantity: 1
Nominal Thrust: 1350KN
3 Hydraulic System Working Pressure: <22Mpa
4 Cutting Length/Height: 1400/420mm
5 Shearing Times: 2-4 Times/Min Empty load Load operation
6 Operating Mode: Mechanical Loading Materials, Push-Button & PLC Control (With The Remote Control)
7 Power Specification: 415V/3P 50Hz
8 Main Machine Power: 110Kw (not including system of cooling, heating and filtering)
9 Oil Tank Size: 3000X2000X800 (4500L)
10 Cooling Mode: Forced air cooling 52P 52P
10
Motor
Model: Y2-250M-4
Quantity: 2
Rated Speed: 1470 Rpm
Rated Power: 55 Kw
11
Pump
Model: A4V250
Quantity: 2
Nominal Displacement: 250ml/r
Rated Pressure: 31.5Mpa
Other Available Models
Model Max Cutting Force(KN) Blade Length(mm) Shear Height(mm) Production Rate(t/h) Power(KW)
WS-630 6300 1400/1600 300/420 8-15 110
WS-800 8000 1600 420/500 12-18 220
WS-1000 10000 1600/2100 420/500 15-25 360
WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height 0
About Jiangsu Dalongkai Technology Co., Ltd.

We specialize in manufacturing scrap metal recycling processing and hydraulic equipment. With strong technology, advanced manufacturing lines and complete testing devices, we produce various hydraulic equipment including:

  • Hydraulic scrap balers
  • Scrap shears (including container shears)
  • Hydraulic metal balers
  • Garbage compactors
  • Briquetting presses
  • Sheet metal shears
  • Other non-standard equipment

Our products are exported worldwide to clients in Russia, India, South Africa, Southeast Asia, and other regions. Our machines are ideal for scrapyards, steel mills, scrap recycling processing industry, and nonferrous & ferrous smelting industry.

Product Images

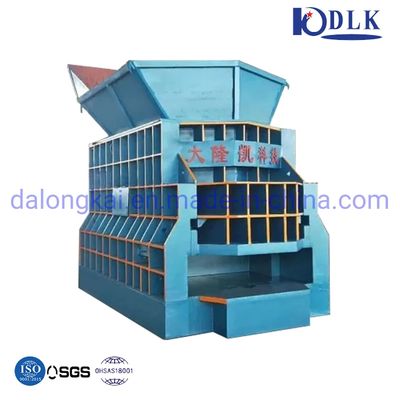

WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height 1

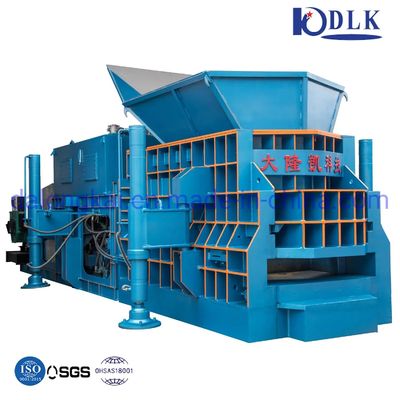

WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height 2
Finished Products

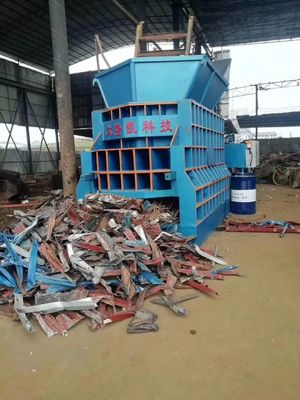

WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height 3

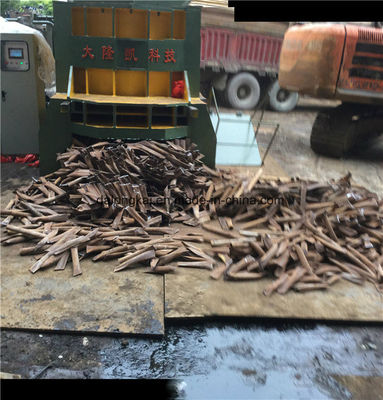

WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height 4

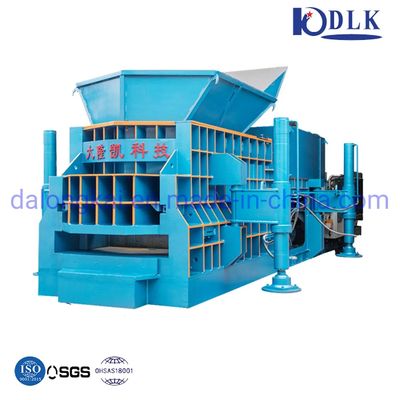

WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height 5
Package
WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height 6
